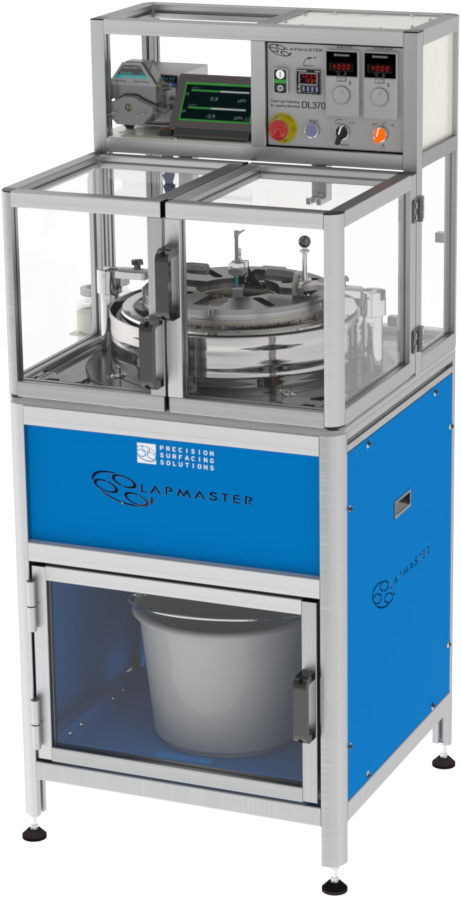

DL370
Double Face Lapping Machine
This Lapmaster series of dual-Lap machines are based upon a two-way & three-way planetary concept designed to yield precise and repeatable results at an economical price. Excellent results have been obtained in the processing of a wide range of materials and components including glass, ceramics, crystals and ferrous materials.
- Ideally suited for small workshops and laboratories 5 carriers, component thickness 0.2- 30 mm (0,0079- 1,18"), component diameter of max. 114 mm (4,49")
- Only the Inner and Outer Gears rotate allowing the carrier to move around the surface of the plates, whilst the top and bottom plate stay stationary.
Plate o.D. 14.56" / 370 mm
Brand: Lapmaster
Characteristics DL370 Lapping Machine
Basis
- Machine base made of extruded aluminum
- Independent drives with variable speed
- Operator control with 24VDC
- Interlocked safety guards
- Lapping agent distribution system with storage tank
- Lapping agent drain tank
STANDARD TOOL
- One set of cast iron overlap plates
- One set of cast iron conditioning gears
- One set of top disk weights
- One set of work supports
OPTIONAL TOOLS
- Stainless steel support discs for polishing
- Polishing pads
- Conditioning brushes
- OPTIONAL EQUIPMENT
- Electronic drive with variable speed
- DTI control
- Peristaltic pump
- Optional disks
- Table / trolley (DL175)
- Protective device
- Diamond spray unit
OPTIONAL EQUIPMENT
- Electronic drive with variable speed
- DTI control
- Peristaltic pump
- Optional disks
- Table / trolley (DL175)
- Protective device
Diamond spray unit
