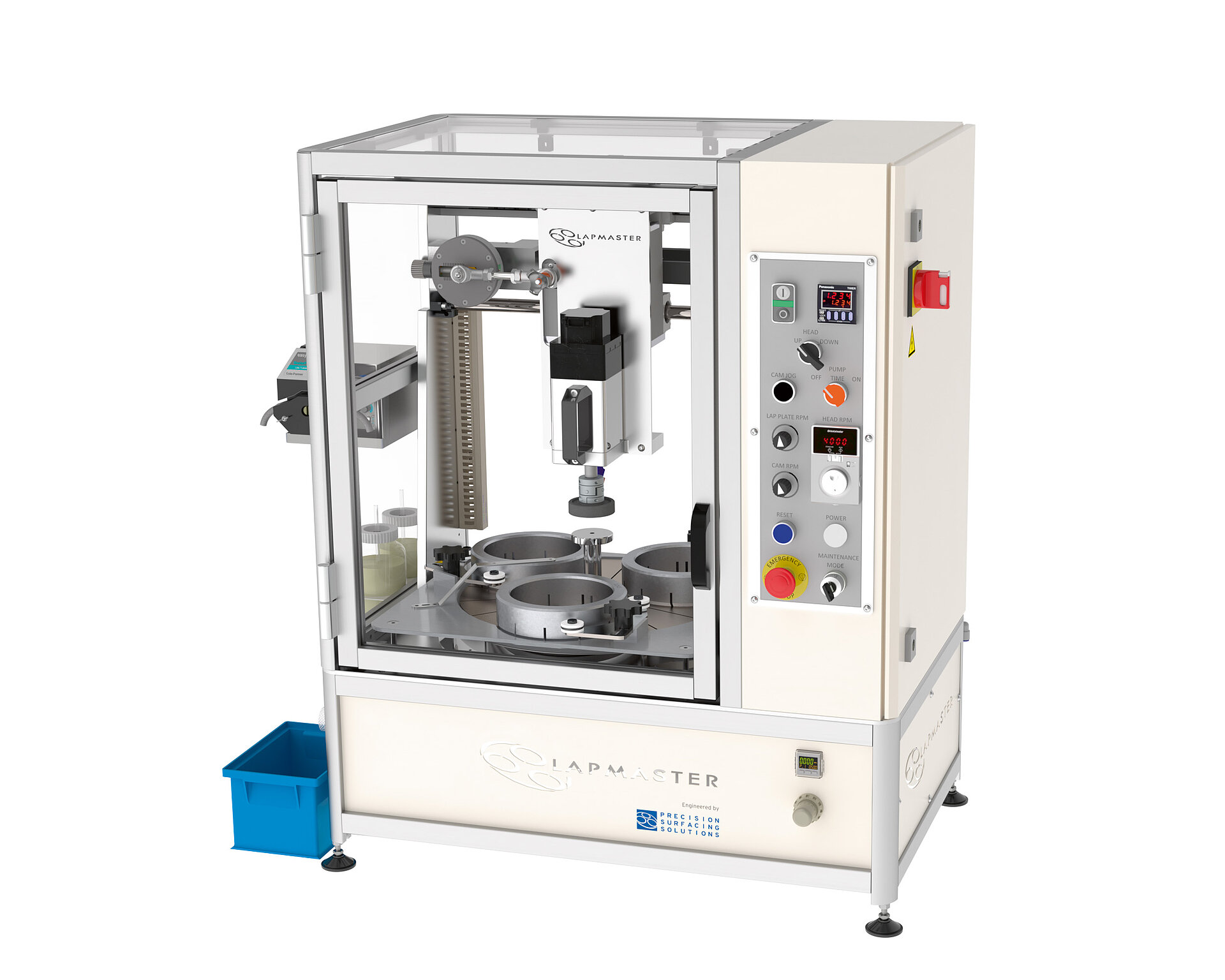

Model IFL 100
Internal Flat Lapping Machine
The IFL series is a small but versatile table-top machine range. It is supplied ready to use. The IFL series has been specially developed for lapping components of up to 100 mm (3.94") diameter bore and a depth of 110 mm (4,33").
- Flat or spherical face lapping inside component bores. Lap plate speed variable between 10 and 80 rpm
- Equipped with an adjustable stroke lapping head and compact lapping arm
Max. Part o. D 13,7" / 350 mm max. part of thickness 7,87" / 200 mm
Brand: Lapmaster
Characteristics Model IFL 100 Lapping Machine
Basis
- Fixed guarding with safety interlocks
- Pneumatic weight relief pressure control
- Programmable process timer
- 1 litre Magnetic stirrer
- Integral compound system
- Waste tank
- Peristaltic pump
STANDARD TOOLING
- One set of tooling (specific size)
- Operation and maintenance manual
OPTIONAL FEATURES
- Electronic variable speed drive
- Fully guarded
- Optional tooling
- Table / trolley (IFL100)
- PLC Control
- Diamond unit
- High curtain
