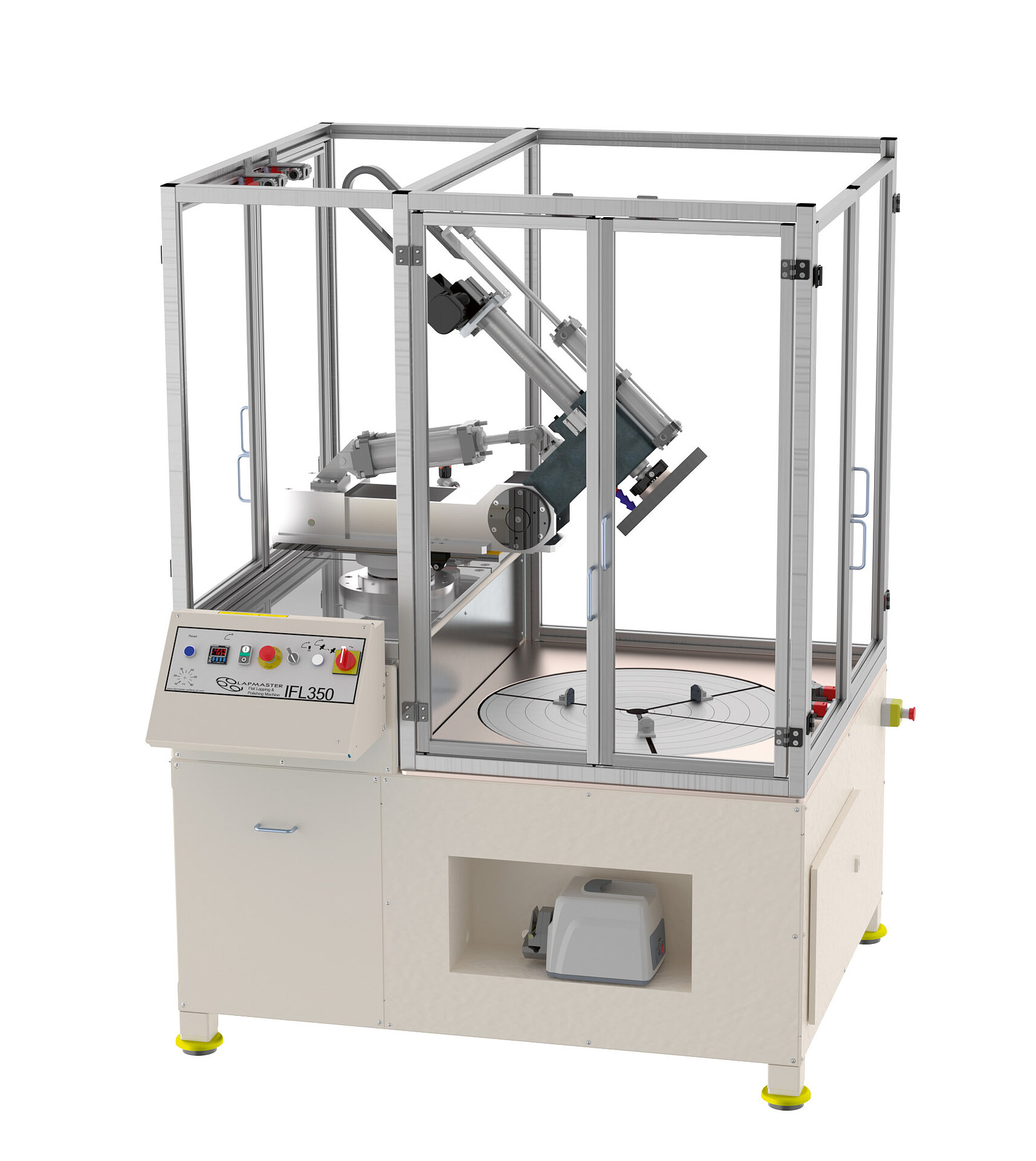

IFL350

Internal Flat Lapping Machine

The IFL series is a small but versatile floor standing machine range. It is supplied ready to use. The IFL series has been specially developed for lapping components of up to to 350mm diameter (13.78") up to 250mm (9.84") depth.

  • Flat or spherical face lapping inside component bores.​ Lap plate speed variable between 2 and 45 rpm
  • Equipped with an adjustable stroke lapping head and compact lapping arm

Max. Part o.D. 13,7" / 350 mm max. Part Thickness 7,87" / 200 mm



Brand: Lapmaster

IFL350 Innen-Flachläppmaschine von Lapmaster Wolters
Request product Download data sheet

Characteristics IFL350 Lapping Machine

Basis

  • Fixed guarding with safety interlocks
  • Pneumatic weight relief pressure control
  • Programmable process timer
  • 1 litre Magnetic stirrer
  • Integral compound system
  • Waste tank
  • Peristaltic pump

STANDARD TOOLING

  •  One set of tooling (specific size)
  • Operation and maintenance manual

OPTIONAL FEATURES

  • Electronic variable speed drive
  • Fully guarded
  • Optional tooling
  • Table / trolley (IFL100)
  • PLC Control
  • Diamond unit
  • High curtain
