Model 20 SL

Open Face Flat Lapping Machine

The new Lapmaster 20 SL series of bench-top lapping machines are based upon a light-weight aluminium frame and a highly efficient Helical-bevel geared motor. This provides an economical saving for energy consumption and bench space.

Lap Plate Variable Speed control as standard
High torque drive unit with 3/4 hp / 0.55 kW geared motor with 104 Nm

Plate Diameter: 20" (508 mm), Versions: 3 Ringe

Brand: Lapmaster

Request product Download data sheet

Characteristics Model 20 SL Lapping Machine

STANDARD TOOLING

Cast Iron Serrated Lap Plate
Three Cast Iron Serrated Conditioning Rings
Abrasive slurry distribution system comprising peristaltic pump, tubing, stirrer with two 1L bottles, and two modular hose dispensing tubes
Set of three Pressure Weights complete with eye-bolts
Set of three Felt Pads, for component weight distribution
Set of three PVC Blank 3mm Workholders
Set of machine tools, including table height spanner & Allen Keys

OPTIONAL ACCESSORIES

Solid Cast Iron Lap Plate
Composite Lap Plate
Polishing Backing Plate
5” flatness gauge, for checking flatness of lap plate, complete with master reference block, metric dial indicator and case

OPTIONAL FEATURES

110V or 230V Single-Phase

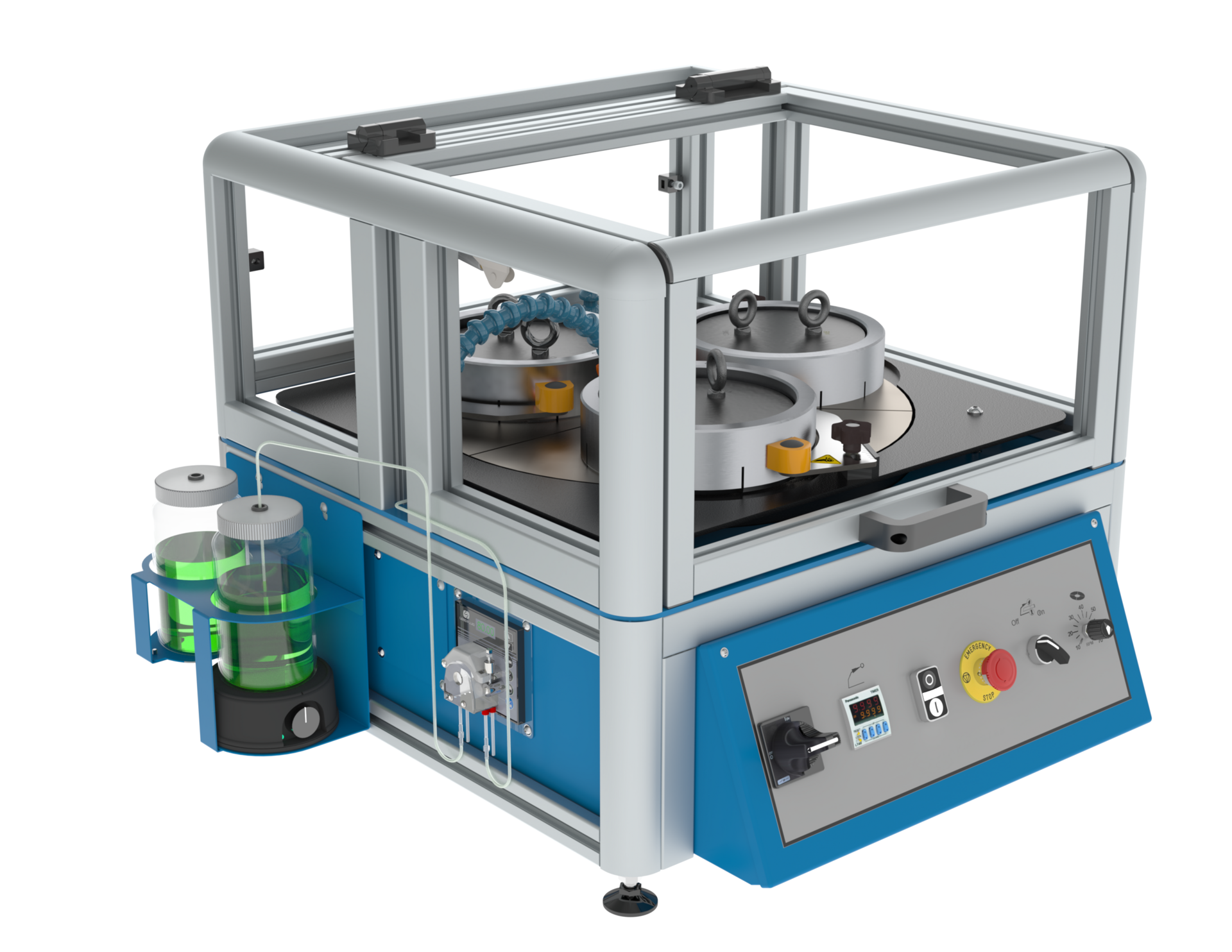

Fully interlocked guard
Centrifugal Pump & Trackwire Feed option
Pneumatic Aerosol Spray Unit
