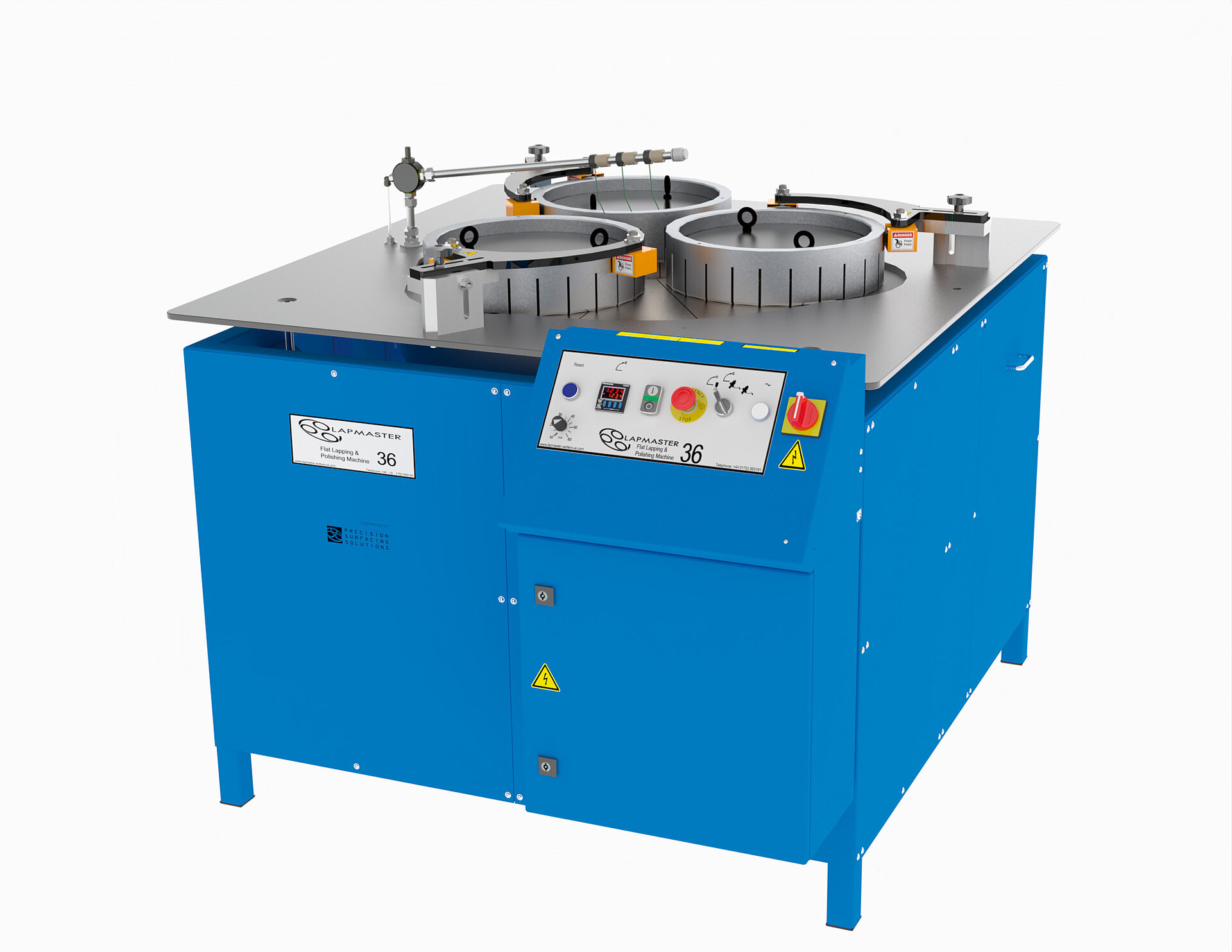

Model 36
Open Face Flat Lapping Machine
Model 36 is a widely used machine of the series. The pneumatic lift version comes with attached pressure weights, through self-aligning bearings, to the rods of three pneumatic cylinders.
- Three / four conditioning rings with roller yoke and bearing assemblies to facilitate in-process plate flatness control
- High torque drive unit with 5.3 hp / 4.0 kW motor and gear reducer
Plate diameter: 36" (914 mm), Versions: 3 or 4 Rings
Brand: Lapmaster
Characteristics Model 36 Lapping Machine
Basis
- High density, cast iron serrated lap plate
- Three / four high density, cast iron serrated conditioning rings
- Three / four pressure weights (open face version)
- Three / four blank workholder discs
- Three / four felt pads
- Free standing abrasive system complete with pump and multi point compound distribution
- Operator panel with start / stop controls, and multiple range digital process timer
- Waste tank
OPTIONAL TOOLING
- Solid stainless steel backing plates for pad polishing
- Composite faced plates
- Solid cast iron lap plate
- Polishing pads
OPTIONAL FEATURES
- Electronic variable speed drive
- Water cooled
- Peristaltic pump
- Optional plates
- PLC Diamond unit
