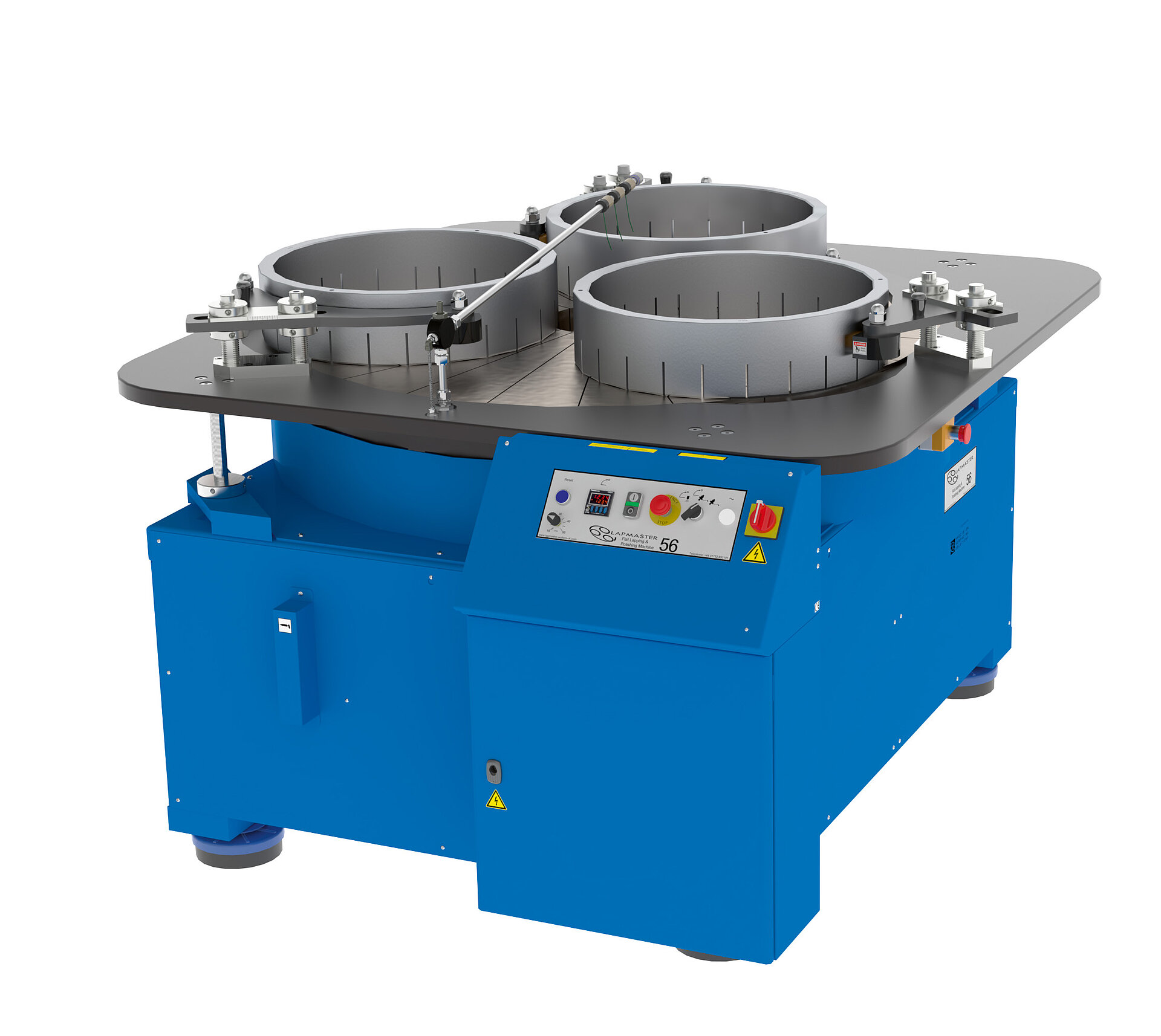

Model 56
Open Face Flat Polishing Machine
The Model 56 is a further development of the Model 48. The diameter of the polishing wheel has been increased accordingly and the machine bed reinforced. It is specially designed for large workpieces.
- Three / four conditioning rings with roller yoke and bearing assemblies to facilitate in-process plate flatness control
- High torque drive unit with 14.75 hp / 11 kW motor and gear reducer
Plate Diameter: 56" (1422 mm), Versions: 3 or 4 Rings
Brand: Lapmaster
Characteristics Model 56 Polishing Machine
Basis
- High density, cast iron segmented (serrated) lap plate
- Three / four high density, cast iron serrated conditioning rings
- Three / four blank workholder discs
- Three / four felt pads
- Free standing abrasive system complete with pump and multi point compound distribution
- Operator panel with start / stop controls, and multiple range digital process timer
- Waste tank
OPTIONAL TOOLING
- Solid stainless steel backing plates
- Composite faced segments
- Polishing pads
OPTIONAL FEATURES
- Electronic variable speed drive
- Water cooled
- Peristaltic pump
- Optional plates
- PLC
- Diamond unit
